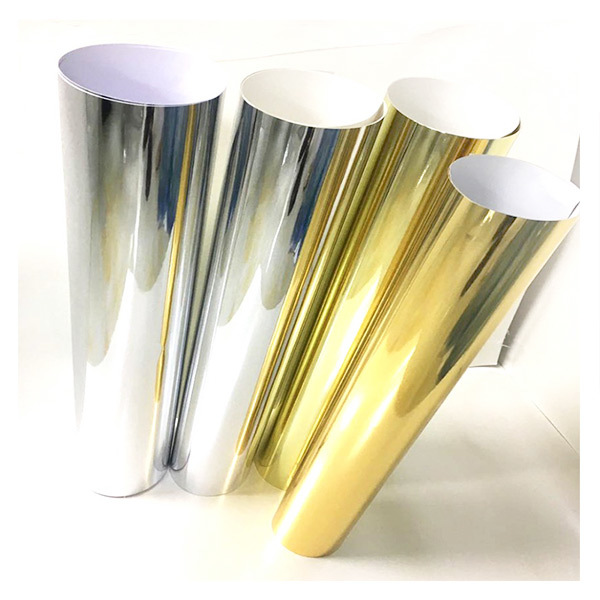

Matt Metallized Film

Matte Metallized Film is a polymer-based film coated with a thin metal layer, typically aluminum, and finished with a non-glossy, matte surface. It offers a sophisticated appearance while maintaining excellent barrier properties against light, moisture, and gases.

Return

Product Introduction

Description
Thickness:12um,15um,18um,Thickness of Aluminum layer 400A，we can produce on customer’s request.

Specification

Thickness of film	Thickness of aluminum layer	Width	Diameter	Core size
12-50μm	300-400Å	≤2320mm	≤800mm	76mm(3″)152mm(6″)
Specification :12um,15um,18um,Thickness of Aluminum layer 400A,we can produce on customer’s request.
Typical product performance：
Item		Unit	Standard value	Test method
Thickness of film		μm	20	ASTM D-374
Tensile Strength	MD	Mpa	130	ASTM D-882
Tensile Strength	TD	Mpa	268	ASTM D-882
Elongation	MD	%	165	ASTM D-882
Elongation	TD	%	50	ASTM D-882
Heat Shrinkage (120℃，2min)	MD	%	3.8	ASTM D-1204
Heat Shrinkage (120℃，2min)	TD	%	1.2	ASTM D-1204
Heat seal strength		N/15mm	4.2
Wetting Tension		mN/m	38	ASTM D-2578
Friction Coefficient		——	0.35	ASTM D-1894
Haze		%	0.9	ASTM D-1003
Glossiness		%	-	ASTM D-2457
Thickness of Aluminum Layer		Å	380
		(Square resistance)Ω/sq	1.53	GB/T 15717
		(Optical density )O.D	1.9	X•Rite361
		(Light transmittance)VLT	1	ASTM D 1746
Equality Tolerance of Metallizing Layer		%	±10	GB/T 15717

Advantage
VMBOPP is made of bopp metallized with aluminum under vacuum environment at a high temperature, it is widely used in the industry of packaging,decoration, label, adhesive, gift packing and others.
